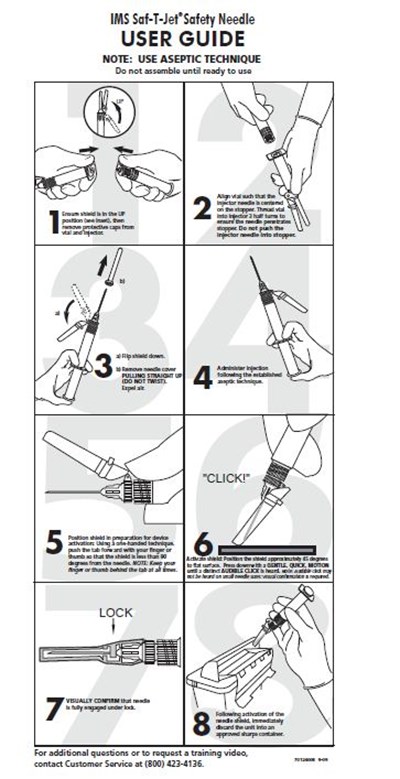

IMS Saf-T-Jet® Safety Needle
USER GUIDE
NOTE: USE ASEPTIC TECHNIQUE
Do not assemble until ready to use

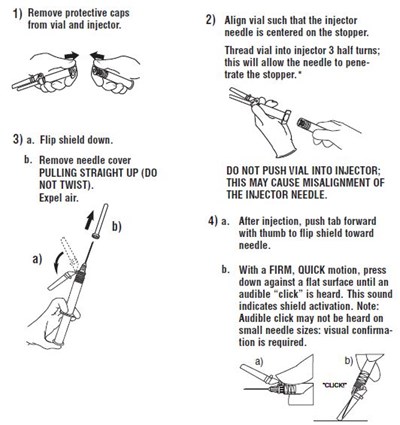

1 Ensure shield is in the UP position (see inset), then remove protective caps from vial and injector.
2 Align vial such that the injector needle is centered on the stopper. Thread vial into injection 3 half turns to ensure the needle penetrates stopper. Do not push the injector needle into stopper.
3 a) Flip shield down.
b) Remove needle cover PULLING STRAIGHT UP (DO NOT TWIST). Expel air.
4 Administer injection following the established aseptic technique.
5 Position shield in preparation for device activation: Using a one-handed technique, push the tab forward with your finger or thumb so that the shield is less than 90 degrees from the needle. NOTE: Keep your finger or thumb behind the tab at all times.
6 Activate shield: Position the shield approximately 45 degrees to flat surface. Press down with a GENTLE, QUICK MOTION until a distinct AUDIBLE CLICK is heard. Note: Audible click may not be heard on small needle sizes: visual confirmation is required.
7VISUALLY CONFIRM that needle is fully engaged under lock.
8 Following activation of the needle shield, immediately discard the unit into an approved sharps container.
For additional questions or to request a traning video, contact Customer Service at (800) 423-4136.
7012400E 9-09
